8" Diameter Shell and Tube Heat exchanger Steam to Liquids

Model Number Cast Iron Heads [inches] Dimensions [inches] Htg.
Surf.
[sq.ft]
2 Pass 4 Pass 2 Pass 4 Pass 2 and 4 Pass
    R1 K1 FNPT R3 K2 R2 H D F M E B A L N1 N2
SA-8201 SA-8401 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 18 6 6 24 3" NPT 1" NPT 14.7
SA-8202 SA-8402 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 30 6 6 7/8 36 3" NPT 1" NPT 22.7
SA-8203 SA-8403 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 42 6 6 13/16 48 3" NPT 1" NPT 30.7
SA-8204 SA-8404 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 54 6 8 7/8 60 4" Flange 1" NPT 38.7
SA-8205 SA-8405 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 66 6 8 7/8 72 4" Flange 1 1/4" NPT 46.6
SA-8206 SA-8406 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 78 6 8 7/8 84 4" Flange 1 1/4" NPT 54.6
SA-8207 SA-8407 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 90 6 8 7/8 96 6" Flange 1 1/4" NPT 62.6
SA-8208 SA-8408 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 102 6 8 7/8 108 6" Flange 1 1/4" NPT 70.6
SA-8209 SA-8409 5 3 4 2 2 4 1/4 8 5/8 13 1/2 8 114 6 8 7/8 120 6" Flange 1 1/4" NPT 78.6

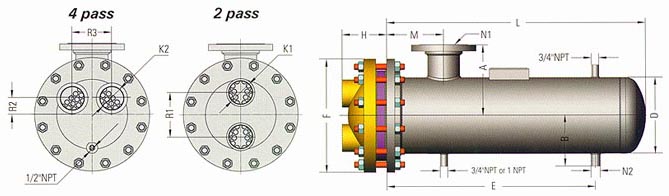

8 inch shell tube heat exchanger dimensions

8" Steam / Liquid Price Request Form

Please Choose Either 2 or 4 Pass and Length Only

Pricing and Delivery Details will be provided within 48 hours.


Number of Passes Length
Name (Required) Company (Required) Address (Required)
City Province/State Postal/Zip Code
Country (Required) Phone (Required) Fax
Email (Required) Project Reference
Quantity Delivery Required by

Home City
Home State

Please submit only once and wait while the form is processed.

8" Diameter Steam to Liquids Shipping Dimensions and Weight.

SA MODEL WEIGHT [kg] WEIGHT [lbs] WEIGHT [kg] WEIGHT [lbs] WEIGHT [kg] WEIGHT [lbs] Packaging Dimensions
8" Diameters Unit Unit Packaging Packaging Total Total Length (in) Width (in) Height (in)
SA-8202 SA-8402 68.30 150.58 36 79 104 229 35.5 23.63 23.63
SA-8203 SA-8403 88.50 195.11 45 100 134 295 47.25 23.63 23.63
SA-8204 SA-8204 108.60 239.42 55 121 163 360 59 23.63 23.63
SA-8205 SA-8405 128.80 283.96 64 141 193 425 71 23.63 23.63
SA-8206 SA-8406 147.80 325.84 74 162 221 488 82.7 23.63 23.63
SA-8207 SA-8407 168.00 370.38 83 183 251 553 94.5 23.63 23.63
SA-8208 SA-8408 189.30 417.33 92 204 282 621 106.3 23.63 23.63
SA-8209 SA-8409 208.30 459.22 102 225 310 684 118 23.63 23.63
SA-8210 SA-8410 227.40 501.33 111 246 339 747 130 23.63 23.63
NOTE: THESE WEIGHTS ARE APPROXIMATIONS ONLY. PACKAGING WEIGHT BASED ON WOOD WITH DENSITY OF 600 KG/M3.
